Podoblock is a company in the Netherlands which specially develops and
sells auxiliary equipment for X-ray photography of equines. It has
obtained the CE mark, and is well-known in Europe, as well
as the global market, for their high quality. By using Podoblock products, you can improve the efficiency of X-ray shooting, which is a heavy work, and obtain the optimum images.
Podoblock
■
Podoblock

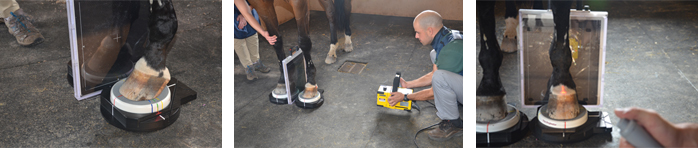

It always guarantees the same angle in every position and minimizes radiation in a maximal fashion because of the
hands-free system.
By using with Podo-Protectionbox or Cowboybox, it can
be held at the optimal shooting distance.
It comes in 3 different heights (90, 120 or 170 mm).
• Made of aluminum base and a synthetic PE500 top piece. • Weight: 6.5 kg • 4 rubber feet • Includes 1 Topblock of your choice
• LM / AP / 45° hands-free system • BE = Base Element • TB = Topblock • UP = Upright Pedal
Product
Item Number
BE 90mm + TB 45°
PB 01AL090-45
BE 90mm + TB 50°
PB 01AL090-50
BE 90mm + TB 55°
PB 01AL090-55
BE 90mm + TB 60°
PB 01AL090-60
BE 90mm + TB 60° UP
PB 01AL090-60 UP
BE 120mm + TB 45°
PB 01AL120-45
BE 120mm + TB 50°
PB 01AL120-50
BE 120mm + TB 55°
PB 01AL120-55
BE 120mm + TB 60°
PB 01AL120-60
BE 120mm + TB 60° UP
PB 01AL120-60 UP
BE 170mm + TB 45°
PB 01AL170-45
BE 170mm + TB 50°
PB 01AL170-50
BE 170mm + TB 55°
PB 01AL170-55
BE 170mm + TB 60°
PB 01AL170-60
BE 170mm + TB 60° UP
PB 01AL170-60 UP
■

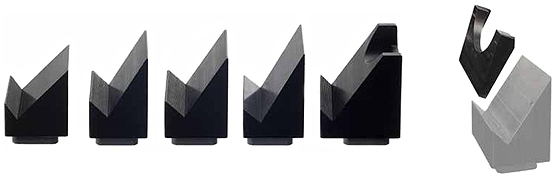

Topblock + optional Wedge
Angle diversity 45°to 60°with 5° increments.
• Made of synthetic PE500
• Available in black only
Product
Item Number
Topblock 45°
TB 0250045
Topblock 50°
TB 0250050
Topblock 55°
TB 0250055
Topblock 60°
TB 0250060
Topblock 60° Upright Pedal
TBD 0250060
Topblock Wedge 10°
TBW 0250010
■
Topblock Flatplate
For LM / AP / 45° takes with the foot standing
flat or upright pedal.
• Made of synthetic PE500, Available in black only
Product
Item Number
Topblock Flatplate AP
TBF 02500AP
Topblock Flatplate LM /AP
TBF 02500LMAP
Topblock Flatplate LM / AP 45°
TBF 0250045
■

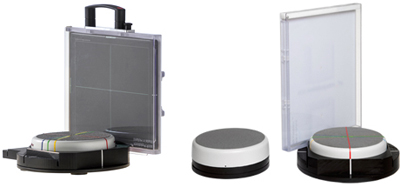

Angleator
With a stable base in combination with a rotating
disk, this contraption will facilitate all your LM / AP hoof exams.
The plateau has predefined angle-markings
for your convenience and has pre-incised slots at 0°,
45°and 90°.
By using with Podo-Protectionbox or Cowboybox, it can
be held at an optimal shooting distance.
• Made of HMPE500 and ABS • Height: 82 mm • Weight of set: 5.0 kg • Diameter plateau: 20 cm • Size: 27.5 cm×34 cm • Anti-slip surface
Product
Item Number
Angleator Set
AK 10ADSET
Base
AK 10ADBASE
Dummy
AK 10ADDUM
■
MagRayCloxx

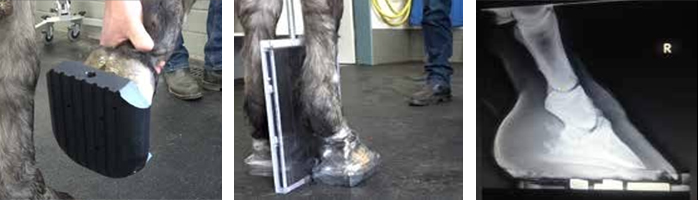

A magnetic X-ray block that greatly enhances
both you and the horse’s mobility and working speed,
as the horse can be repositioned more rapidly. Furthermore, it is more time-saving since it is not required to use sedation for the horse during the process.
The cloxx can be used with or without (radiolucent) foil
that is wrapped around the horse’s shoe for safe fixation,
and even works on a barefoot horse.
• Made of synthetic PE500
• Clean break-over on both front and side
• Magnets to fix to the horseshoe
• Bottom of Cloxx padded with anti-slip rubber strips
• Comes with radiolucent foil for extra fixation
