Other X-ray Protection Items
Introducing various types of X-Ray protection.

■ CT Shield
A shield to protect the sensitive parts when shooting the CT (ex: the lens, thyroid, breast, etc).
For children, we have a wide range of size depending on their age.



  - Eye Shield
   Reduces over 60% radiation to the eye from the CT scanner.
  - Thyroid Shield
   Provides over 65% protection to the sensitive thyroid gland and prevents tissue damage.
  - Breast Shield
   Reduces cancer risk during CT scan by providing over 67% protection to the sensitive tissues
   of the breast.
  - Pediatric Shield
   Protects children who are more sensitive to radiation than adults.

Types Size width × length (mm) Quantity/1 Box
Eye Free 40×150 20 Pcs
Thyroid Free 90×150 10 Pcs
Breast M 200×430 1 Pc
  L 200×530 1 Pc
Pediatric Pediatric 50×140 10 Pcs
  1 Year old 60×240 8 Pcs
  5 Year old 80×280 6 Pcs
  10 Year old 100×330 4 Pcs

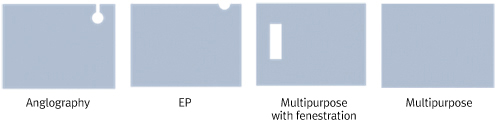

■ Rad Block
Managing occupational exposure to scattered radiation during surgical procedures,
our procedure specific Drapes/Rad block protects the physician from radiation exposure.
They are shaped in various ways for different types of surgeries, so that it will not block the procedure
when placed on the patient.


Size (Inch) X-ray attenuation length Quantity/
Per Box
13×16" HIGH(0.35mmPb) 10
MEDIUM(0.25mmPb) 10
LOW(0.125mmPb) 10





■ Patient Shield
The shield for the patient. By just placing it on the patient, it will easily protect the covered parts.
You can choose among three different sizes, depending on the usage.





Lead
equivalent
Size Width × Length(cm) weight(kg)
KRYPTOLiTE
weight(kg)
LiteGreen
weight(kg)
MaxLite
weight(kg)
LITELEAD
0.25 S 30×30 0.2 0.2 0.2 0.3
M 40×40 0.4 0.5 0.5 0.6
L 50×50 0.7 0.8 0.8 0.9
0.35 S 30×30 0.4 0.4 0.4 0.5
M 40×40 0.7 0.7 0.7 0.9
L 50×50 1.1 1.2 1.2 1.4
0.50 S 30×30 0.5 0.5 0.5 0.6
M 40×40 0.8 0.9 0.9 1.1
L 50×50 1.3 1.5 1.5 1.8
1.00 S 30×30 0.9 1.0 1.0 1.2
M 40×40 1.7 1.9 1.9 2.2
L 50×50 2.6 2.9 2.9 3.5
