■ Features

- The frame with handle makes it easier to insert and remove from the imaging unit, and it can prevent damage to the grid.

- By adding special features such as grooves and magnet function, it possible to identify specifications or to fix a grid.

- Frame design can be customized according to usage.

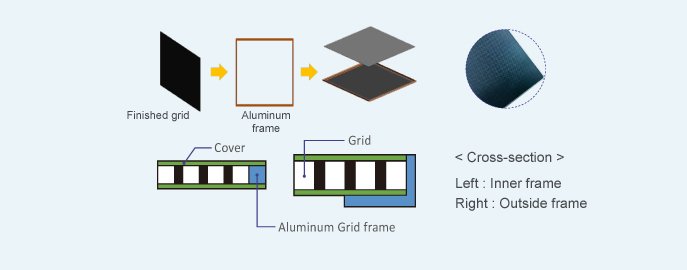

- Inner frame

An inner frame integrates a grid and a frame before attaching a cover.
It is thinner than the outside frame and has flatness with little unevenness on both front and back sides, so it enhances adhesion to the image receiving part.

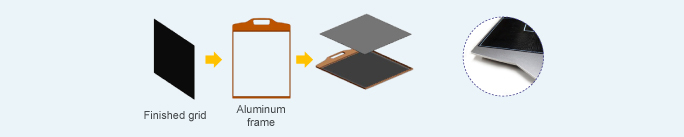

- Outside frame

The outside frame puts the frame and the grid with a cover together.
Handles of various shapes can be manufactured and suitable designs depending on the usage are possible.

- Simple frame

It is a product that put a simple frame and a grid with a cover together.
It puts emphasis on the protection of the grid with a compact design.
