Since it is possible to control the quality precisely, the straightness of foil minimizes moire phenomenon caused by nonuniformity.
■ Features
- The Carbon Graphite Interspaced grid is a JPI original grid produced by applying the sawing process from the field of semiconductors.
- Suitable for tomosynthesis and angiography equipment which requires delicate images.
Since we can produce up to 135 lines, you can use it with tomosynthesis and other applications where strict accuracy is essential.
Also, by using 100 lines or more high density grida, the grida can be used without a bucky system, which prevents the noise trouble caused by the bucky system of mammography.

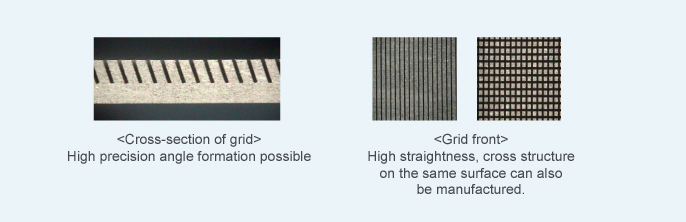

- As we can freely change the thickness of the foil and angle formation of the grid lines, it is possible to produce extremely small sized grids, or criss-cross grids, depending on the customer's requests. Therefore it is optimal as a prototype for research and development.
■ Carbon Graphite Grid Specifications
* In addition to the specifications above, it can be manufactured per your request.
■ Physical characteristics
＊Test condition: a.35kv 50mAs, b. Focal range 0.1/0.3mm, c. Focal distance 60cm, d. Molybdenum filter
＊Measuring device: fluorescent meter
＊This test was done based on IEC 60627 2001 (3rd),Clause 5.1.4b), 5.2.1, 5.2.3.
|
